Definition of vehicles

An XML block with tag name <vehicle:class> can be provided for each vehicle class, then each <vehicle> will instantiate a vehicle or robot of a particular class.

Inside <vehicle:class> tag, there are tags <dynamics>, <friction> and instances of <sensor>.

Note

See predefined vehicles types for XML code examples: Vehicles.

Vehicle kinematic and dynamics

At present, there are three types of vehicle dynamics implemented. Refer [vehicle_models] for more information.

<dynamics> with attribute class specifies class of dynamics used. Currently available classes:

  • differential

  • car_ackermann

  • ackermann_drivetrain

Each class has specific inner tags structure for its own configuration.

Common

Every dynamics has wheels specified with tags <i_wheel> where i stand for wheel position index (r, l for differential drive and fr, fl, rl, rr for Ackermann-drive)

Wheel tags have following attributes:

  • pos - two floats representing x an y coordinate of the wheel in local frame

  • mass - float value for mass of the wheel

  • width - float value representing wheel width [fig:wheel_forces]

  • diameter - float value to represent wheel diameter [fig:wheel_forces]

Ackermann models also use <max_steer_ang_deg> to specify maximum steering angle.

<chassis> is also common for all dynamics, it has attributes:

  • mass - mass of chassis

  • zmin - distance from bottom of the robot to ground

  • zmax - distance from top of the robot to ground

Motion controllers

There are controllers for every dynamics type [sec:controllers]. In XML their names are

  • raw - control raw forces

  • twist_pid - control with twist messages

  • front_steer_pid - [Ackermann only] - control with PID for velocity and raw steering angles

Controllers with pid in their names use PID regulator which needs to be configured. There are tags <KP><KI><KD> for this purpose. Also they need the parameter <max_torque> to be set.

Twist controllers need to set initial <V> and <W> for linear and angular velocities respectively.

Steer controllers need to set initial <V> and <STEER_ANG> for linear velocity and steering angle respectively.

Ackermann-drivetrain model

needs a differential type and split to be configured. For this purpose there is a tag <drivetrain> with argument type. Supported types are defined in [sec:ackermann_drivetrain]. In XML their names are:

  • open_front

  • open_rear

  • open_4wd

  • torsen_front

  • torsen_rear

  • torsen_4wd

<drivetrain> has inner tags describing its internal structure:

  • <front_rear_split>

  • <front_rear_bias>

  • <front_left_right_split>

  • <front_left_right_bias>

  • <rear_left_right_split>

  • <rear_left_right_bias>

which are pretty self-explanatory.

Friction

Friction models are described in [sec:friction_models] and defined outside of <dynamics>. The tag for friction is <friction> with attribute class.

Class names in XML are:

  • wardiagnemma

  • default

Default friction [sec:default_friction] uses subtags:

  • <mu> - the friction coefficient

  • <C_damping> - damping coefficient

In addition to default, Ward-Iagnemma friction includes subtags:

  • A_roll

  • R1

  • R2

that are described in [sec:wi_friction].

Vehicle instances

For each vehicle class, an arbitrary number of vehicle instances can be created in a given world.

Vehicle instances are defined with the <vehicle> tag that has attributes name and class. class must match one of the classes defined earlier with <vehicle:class> tag.

Subtags are:

  • <init_pose> - in global coordinates: \(x\), \(y\), \(\gamma\) (deg)

  • <init_vel> - in local coordinates: \(v_x\),\(v_y\), \(\omega\) (deg/s)

Logging

Each vehicle is equipped with parameters logger(s). This logger is not configurable and can be rewritten programmaticaly.

Logger are implemented via CsvLogger class and make log files in CSV format which then can be opened via any editor or viewer.

Loggers control is introduced via robot controllers, each controller controls only loggers of its robot.

Best results in visualizing offers QtiPlot [fig:qtiplot_example1].

At the moment, following characteristics are logged:

  • Pose (\(x, y, z, \alpha, \beta, \gamma\))

  • Body velocity (\(\dot{x}, \dot{z}, \dot{z}\))

  • Wheel torque (\(\tau\))

  • Wheel weight (\(m_{wp}\))

  • Wheel velocity (\(v_x, v_y\))

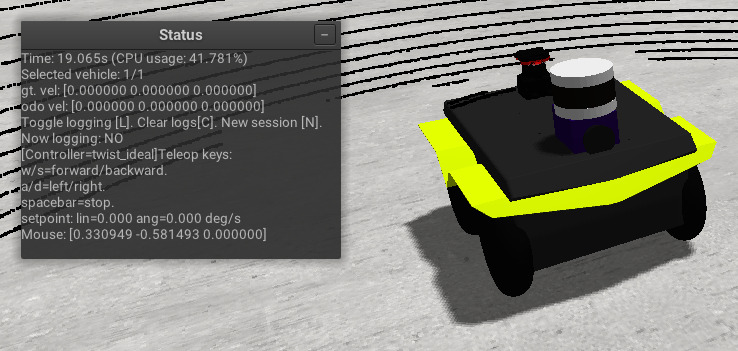

Loggers support runtime clear and creating new session. The new session mode finalizes current log files and starts to write to a new bunch of them.
