Virtual base class for all sensors. More...

#include <SensorBase.h>

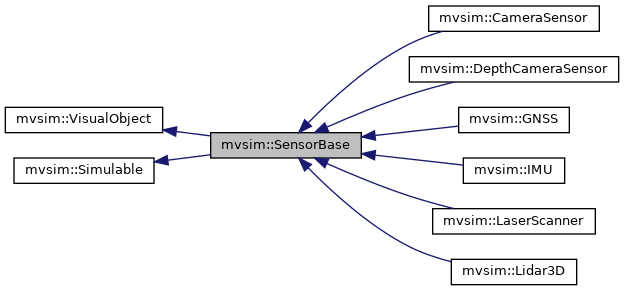

Inheritance diagram for mvsim::SensorBase:

[legend]

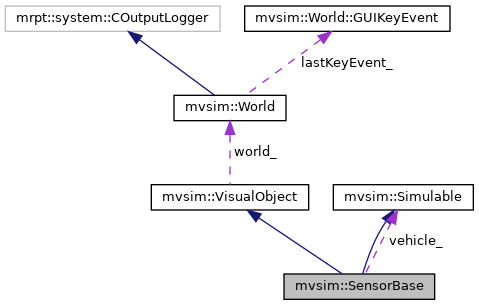

Collaboration diagram for mvsim::SensorBase:

[legend]

Public Types
using	Ptr = std::shared_ptr< SensorBase >

Public Types inherited from mvsim::Simulable
using	Ptr = std::shared_ptr< Simulable >

Public Member Functions
	SensorBase (Simulable &vehicle)

virtual void	loadConfigFrom (const rapidxml::xml_node< char > *root)

void	registerOnServer (mvsim::Client &c) override

virtual void	simulateOn3DScene ([[maybe_unused]] mrpt::opengl::COpenGLScene &gl_scene)

double	sensor_period () const

Simulable &	vehicle ()

const Simulable &	vehicle () const

Public Member Functions inherited from mvsim::VisualObject
	VisualObject (World *parent, bool insertCustomVizIntoViz=true, bool insertCustomVizIntoPhysical=true)

	VisualObject (const VisualObject &)=delete

VisualObject &	operator= (const VisualObject &)=delete

	VisualObject (VisualObject &&)=delete

VisualObject &	operator= (VisualObject &&)=delete

virtual void	guiUpdate (const mrpt::optional_ref< mrpt::opengl::COpenGLScene > &viz, const mrpt::optional_ref< mrpt::opengl::COpenGLScene > &physical)

World *	parent ()

const World *	parent () const

void	customVisualVisible (const bool visible)

bool	customVisualVisible () const

const std::optional< Shape2p5 > &	collisionShape () const

void	showCollisionShape (bool show)

Public Member Functions inherited from mvsim::Simulable
	Simulable (World *parent)

virtual void	simul_pre_timestep (const TSimulContext &context)

virtual void	simul_post_timestep (const TSimulContext &context)

virtual void	apply_force (const mrpt::math::TVector2D &force, const mrpt::math::TPoint2D &applyPoint=mrpt::math::TPoint2D(0, 0))

virtual VisualObject *	meAsVisualObject ()

mrpt::math::TTwist2D	getRefVelocityLocal () const

mrpt::math::TTwist2D	getVelocityLocal () const

mrpt::math::TTwist2D	getRefVelocityGlobal () const

mrpt::math::TTwist2D	getComVelocityGlobal () const

mrpt::math::TPose3D	getPose () const

virtual mrpt::math::TPose3D	getRelativePose () const

mrpt::math::TPose3D	getPoseNoLock () const
	No thread-safe version. Used internally only.

mrpt::math::TVector3D	getLinearAcceleration () const

void	setPose (const mrpt::math::TPose3D &p, bool notifyChange=true) const

virtual void	setRelativePose (const mrpt::math::TPose3D &p)

void	setRefVelocityLocal (const mrpt::math::TTwist2D &dq)

mrpt::poses::CPose2D	getCPose2D () const
	Alternative to getPose()

mrpt::poses::CPose3D	getCPose3D () const
	Alternative to getPose()

const std::string &	getName () const

void	setName (const std::string &s)

bool	isInCollision () const

bool	hadCollision () const

void	resetCollisionFlag ()

const b2Body *	b2d_body () const

b2Body *	b2d_body ()

World *	getSimulableWorldObject ()

const World *	getSimulableWorldObject () const

virtual void	freeOpenGLResources ()

virtual std::optional< float >	getElevationAt ([[maybe_unused]] const mrpt::math::TPoint2D &worldXY) const

Static Public Member Functions
static SensorBase::Ptr	factory (Simulable &parent, const rapidxml::xml_node< char > *xml_node)

static std::shared_ptr< mrpt::opengl::CSetOfObjects >	GetAllSensorsOriginViz ()

static std::shared_ptr< mrpt::opengl::CSetOfObjects >	GetAllSensorsFOVViz ()

static void	RegisterSensorFOVViz (const std::shared_ptr< mrpt::opengl::CSetOfObjects > &o)

static void	RegisterSensorOriginViz (const std::shared_ptr< mrpt::opengl::CSetOfObjects > &o)

Static Public Member Functions inherited from mvsim::VisualObject
static void	FreeOpenGLResources ()

Protected Member Functions
bool	should_simulate_sensor (const TSimulContext &context)

World *	world ()

const World *	world () const

bool	parseSensorPublish (const rapidxml::xml_node< char > *node, const std::map< std::string, std::string > &varValues)

void	reportNewObservation (const std::shared_ptr< mrpt::obs::CObservation > &obs, const TSimulContext &context)

void	reportNewObservation_lidar_2d (const std::shared_ptr< mrpt::obs::CObservation2DRangeScan > &obs, const TSimulContext &context)

void	make_sure_we_have_a_name (const std::string &prefix)
	Assign a sensible default name/sensor label if none is provided:

Protected Member Functions inherited from mvsim::VisualObject
bool	parseVisual (const rapidxml::xml_node< char > &rootNode)
	Returns true if there is at least one `<visual>...</visual>` entry.

bool	parseVisual (const JointXMLnode<> &rootNode)

virtual void	internalGuiUpdate (const mrpt::optional_ref< mrpt::opengl::COpenGLScene > &viz, const mrpt::optional_ref< mrpt::opengl::COpenGLScene > &physical, bool childrenOnly=false)=0

void	addCustomVisualization (const mrpt::opengl::CRenderizable::Ptr &glModel, const mrpt::poses::CPose3D &modelPose={}, const float modelScale=1.0f, const std::string &modelName="group", const std::optional< std::string > &modelURI=std::nullopt, const bool initialShowBoundingBox=false, const std::optional< double > &scaleOverride=std::nullopt)

void	setCollisionShape (const Shape2p5 &cs)

Protected Attributes
Simulable &	vehicle_
	The vehicle this sensor is attached to.

double	sensor_period_ = 0.1

double	sensor_last_timestamp_ = 0

std::string	publishTopic_

std::map< std::string, std::string >	varValues_
	Filled in by SensorBase::loadConfigFrom()

Protected Attributes inherited from mvsim::VisualObject
World *	world_

std::shared_ptr< mrpt::opengl::CSetOfObjects >	glCustomVisual_

std::shared_ptr< mrpt::opengl::CSetOfObjects >	glCollision_

int32_t	glCustomVisualId_ = -1

const bool	insertCustomVizIntoViz_ = true

const bool	insertCustomVizIntoPhysical_ = true

Protected Attributes inherited from mvsim::Simulable
std::string	name_

Additional Inherited Members
Static Public Attributes inherited from mvsim::VisualObject
static double	GeometryEpsilon

Detailed Description

Virtual base class for all sensors.

Constructor & Destructor Documentation

◆ SensorBase()

mvsim::SensorBase::SensorBase ( Simulable & vehicle )

Ctor takes a ref to the vehicle to which the sensor is attached.

Member Function Documentation

◆ factory()

static SensorBase::Ptr mvsim::SensorBase::factory	(	Simulable &	parent,
		const rapidxml::xml_node< char > *	xml_node
	)

static

Class factory: Creates a sensor from XML description of type "<sensor class='CLASS_NAME'>...</sensor>".

◆ loadConfigFrom()

virtual void mvsim::SensorBase::loadConfigFrom ( const rapidxml::xml_node< char > * root )

virtual

Loads the parameters common to all sensors. Should be overriden, and they call to this base method.

Reimplemented in mvsim::Lidar3D, mvsim::LaserScanner, mvsim::IMU, mvsim::GNSS, mvsim::DepthCameraSensor, and mvsim::CameraSensor.

◆ should_simulate_sensor()

bool mvsim::SensorBase::should_simulate_sensor ( const TSimulContext & context )

protected

Should be called within each derived class simul_post_timestep() method to update sensor_last_timestamp_ and check if the sensor should be simulated now, given the current simulation time, and the sensor rate in sensor_period_.

Returns: true if it is now time to simulate a new sensor reading, false otherwise.

◆ vehicle()

Simulable& mvsim::SensorBase::vehicle ( )

inline

The vehicle this sensor is attached to

Member Data Documentation

◆ publishTopic_

std::string mvsim::SensorBase::publishTopic_

protected

Publish to MVSIM ZMQ topic stream, if not empty (default)

◆ sensor_last_timestamp_

double mvsim::SensorBase::sensor_last_timestamp_ = 0

protected

The last sensor reading timestamp. See sensor_period_

◆ sensor_period_

double mvsim::SensorBase::sensor_period_ = 0.1

protected

Generate one sensor reading every this period s

The documentation for this class was generated from the following file:

/home/docs/checkouts/readthedocs.org/user_builds/mvsimulator/checkouts/stable/modules/simulator/include/mvsim/Sensors/SensorBase.h
