Definition of vehicles

An XML block with tag name <vehicle:class> can be provided for each vehicle class, then each <vehicle> will instantiate a vehicle or robot of a particular class.

Inside <vehicle:class> tag, there are tags <dynamics>, <friction> and instances of <sensor>.

Note

See predefined vehicles types for XML code examples: Vehicles.

Vehicle kinematic and dynamics

There are five vehicle dynamics models. See vehicle_models for details.

<dynamics> with attribute class specifies which model to use. Currently available classes:

  • differential — 2-wheel differential drive

  • differential_3_wheels — 3-wheel differential (e.g. with a rear caster)

  • differential_4_wheels — 4-wheel skid-steer differential

  • ackermann — front-axle steered, simplified torque model

  • ackermann_drivetrain — front-axle steered with explicit drivetrain

Each class has specific inner tags for its own configuration.

Common

Every dynamics has wheels specified with tags <i_wheel> where i stand for wheel position index (r, l for differential drive and fr, fl, rl, rr for Ackermann-drive)

Wheel tags have following attributes:

  • pos - two floats representing x an y coordinate of the wheel in local frame

  • mass - float value for mass of the wheel

  • width - float value representing wheel width [fig:wheel_forces]

  • diameter - float value to represent wheel diameter [fig:wheel_forces]

Ackermann models also use <max_steer_ang_deg> to specify maximum steering angle.

<chassis> is also common for all dynamics, it has attributes:

  • mass - mass of chassis

  • zmin - distance from bottom of the robot to ground

  • zmax - distance from top of the robot to ground

Motion controllers

Each dynamics class has one or more controllers. The available controller class names are:

  • raw — control raw wheel torques directly (available for all dynamics)

  • twist_pid — [differential only] control with (v, omega) twist messages via PID

  • twist_ideal — [differential only] ideal twist tracking (no PID, instantaneous)

  • twist_front_steer_pid — [Ackermann / Ackermann-drivetrain] control with (v, steer_angle) via PID

  • front_steer_pid — [Ackermann / Ackermann-drivetrain] control with PID for velocity and raw steering angles

Controllers with pid in their names use a PID regulator that needs to be configured with tags <KP>, <KI>, <KD>, and <max_torque>.

Twist controllers need initial <V> and <W> for linear and angular velocities respectively.

Steer controllers need initial <V> and <STEER_ANG> for linear velocity and steering angle respectively.

Tip

Use the raw controller with zero torques to create a passive, unpowered body (e.g. a trailer pulled through a joint).

Ackermann-drivetrain model

needs a differential type and split to be configured. For this purpose there is a tag <drivetrain> with argument type. Supported types are defined in [sec:ackermann_drivetrain]. In XML their names are:

  • open_front

  • open_rear

  • open_4wd

  • torsen_front

  • torsen_rear

  • torsen_4wd

<drivetrain> has inner tags describing its internal structure:

  • <front_rear_split>

  • <front_rear_bias>

  • <front_left_right_split>

  • <front_left_right_bias>

  • <rear_left_right_split>

  • <rear_left_right_bias>

which are pretty self-explanatory.

Friction

Friction models are described below and defined outside of <dynamics>. The tag for friction is <friction> with attribute class.

Class names in XML are:

  • wardiagnemma

  • default

Default friction uses subtags:

  • <mu> - the friction coefficient

  • <C_damping> - damping coefficient

In addition to default, Ward-Iagnemma friction includes subtags:

  • A_roll

  • R1

  • R2

that are described in the Ward-Iagnemma friction model documentation.

Vehicle instances

For each vehicle class, an arbitrary number of vehicle instances can be created in a given world.

Vehicle instances are defined with the <vehicle> tag that has attributes name and class. class must match one of the classes defined earlier with <vehicle:class> tag.

Subtags are:

  • <init_pose> - in global coordinates: \(x\), \(y\), \(\gamma\) (deg)

  • <init_vel> - in local coordinates: \(v_x\),\(v_y\), \(\omega\) (deg/s)

Logging

Each vehicle is equipped with a high-rate logger, capable of streaming to CSV files the internal variables of each vehicle and wheel, separately, for posterior analysis.

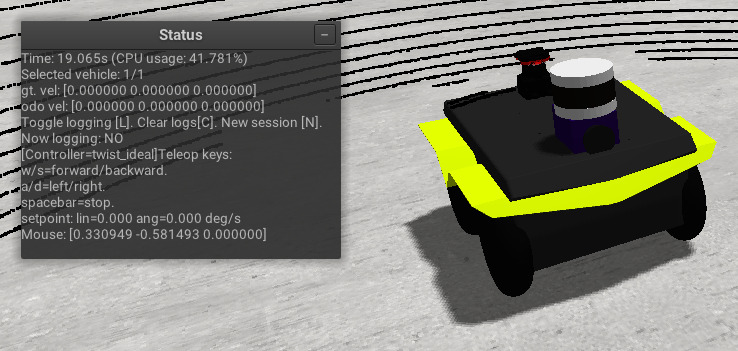

It can be started or stopped by pressing the key ‘L’ after getting the focus to the MVSim GUI window, as can be seen in the control UI instructions:

UI controls

Each “logging session” will be dumped into a separate CSV file for convenience of posterior analysis. The header of the CSV includes the variable names for each column: vehicle position and orientation, wheel angular velocity and acceleration, lateral and longitudinal forces, etc.

If you want to add new variables to this logger, look for logger->updateColumn(...) in the code for usage examples.

ROS 2 Integration

When running MVSim with the ROS 2 node, vehicles automatically publish their state and sensor data to ROS 2 topics. See Vehicles section 10 for complete topic listings.

Published Topics

Core topics (always published):

  • <VEH>/odom — Odometry with realistic noise

  • <VEH>/base_pose_ground_truth — Perfect ground truth for evaluation

  • <VEH>/collision — Collision detection status

  • <VEH>/tf — Transform tree for the vehicle

Sensor topics are published dynamically as observations are generated. Topic names are derived from the sensor’s name attribute in the XML definition.

Subscribed Topics

  • <VEH>/cmd_vel — Velocity commands (geometry_msgs/Twist)

The vehicle processes these commands through its configured controller (see Motion controllers section). Commands are valid for 1 second, after which the vehicle stops for safety.

ROS 2 Launch Parameters

Key parameters when launching the mvsim_node:

  • realtime_factor — Simulation speed multiplier (default: 1.0)

  • headless — Run without GUI (default: false)

  • period_ms_publish_tf — Transform publication rate in milliseconds (default: 20)

  • do_fake_localization — Enable fake AMCL output (default: false)

  • publish_tf_odom2baselink — Publish odom→base_link transform (default: true)

  • publisher_history_len — Queue size for publishers (default: 10)

Example launch:

ros2 launch mvsim demo_warehouse.launch.py realtime_factor:=1.0 headless:=false
